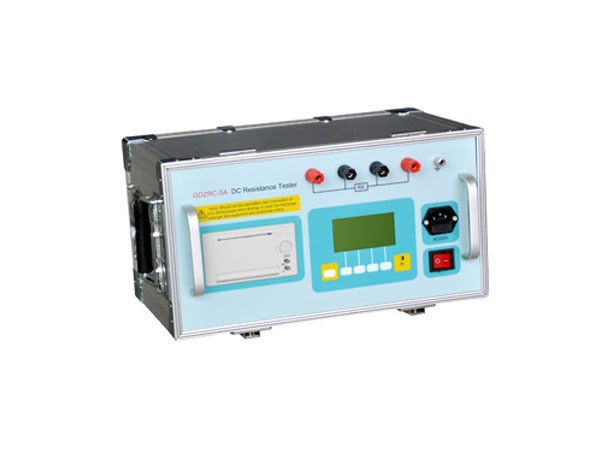

    GDZRC-5A DC Winding Resistance Tester hits:

    Product Description

    GDZRC series DC winding resistance tester is designed to measure DC resistance of inductive devices, such as transformers and power inductors. It has the features of fast measurement, small size and high accuracy of measurement,which is ideal equipment of measuring transformer winding and DC resistance of big power inductance equipment.


    Features

    • Four leads measurement to ensure measuring accuracy.
    • Program-controlled current source to increase measuring speed.
    • Auto discharge and discharge indication function, to ensure safety and availability.
    • LCD screen and Built-in Printer.

    Specifications


    Items

    Specifications

    Remark

    Testing current

    1mA  10mA  1A  5A



    Measurement range

    1mA:

    10mA

    1A

    5A

    -20KΩ

    -2KΩ

    10mΩ-20Ω

    1mΩ-



    Accuracy

    ±0.2% of full range ±2digit



    Data storage

    255pcs



    Display

    LCD screen

    1/2 digit

    Max.resolution

    0.1μΩ



    Power supply

    AC 220V±22V, 50Hz±2 Hz

    Fuse 5A

    Max.power consumption

    120W

    Testing current is 10A

    Working environment

    Temperature: 0-40

    Relative humidity: ≤80%



    Dimension

    200*400*280mm



    Weight

    About 6kg
