GDUI-311PD Acoustic PD Camera

GDUI-311PD Acoustic PD Camera

Brief Description:

GDUI-311PD Acoustic PD Camera supports ultrasonic frequency bands. The instrument uses the microphone array beam form technology to obtain the sound source distribution data and collects the video screen with high -definition cameras in real time. By fusion of sound source distribution data with video images, the changing sound source dynamic on the display screen.


Product Detail

Product Tags

Description

GDUI-311PD can help users quickly detect possible gas leakage and vacuum leaks at the noisy industrial site and quickly check the potential partial discharge failure point.

It uses an all-aluminum alloy shell, which is sturdy and durable and can adapt to a complex and changeable working environment.

It is easy operation device. Only the two parameters of the test frequency range and the dynamic range of the test can meet most test needs. It supports the camera mode, video mode, the data on the work site is flexible. With large capacity TF memory card, the test results are exported quickly and reported.

Specifications

Microphone Array

Microphone 128-channel MEMS digital microphone
The effective test frequency range 2kHz-48kHz
The audio-visual angle 62°
Sound image frame rate Greater than 25FPS
Test sound voltage level range 30dB-120dB

Camera

Camera Angle 62°
The focal length of the camera Fixed at 3.04mm
Image Fusion 8 million pixels

Display

Resolution 1024*600
Size 7 inches
Touch screen Capacitive
Backlight brightness Adjustable

Storage Of Data

Storage Of Data Expand TF card, support 64G storage space
Internal Storage About 8G storage, for emergency storage only
Data Storage Format .jpg (picture) and.mp4 (video)

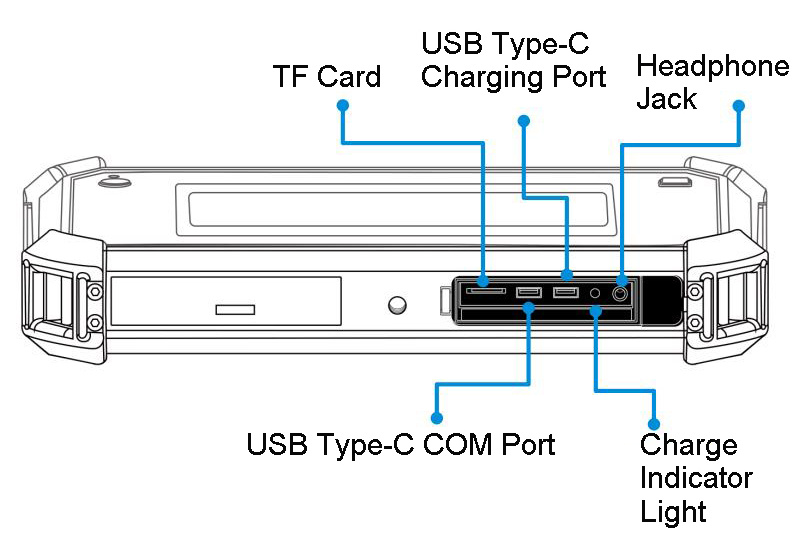

Port

USB Port USB 3.0 Type-C
Headphone Jack 3.5mm

Power Source

Battery 6600mAH@7.2V
Battery Working Time Capable of continuous working around 4hours
Charging USB Type-C port, USB PD protocol
Power Consumption The maximum power consumption of the device is about 29W (protection battery charging power), and the single-charge battery power is 16W

Environmental Parameter

Working temperature -10℃--+50℃,10%~ 95% without condensation
Storage temperature -20℃--+40℃
Charging temperature 10 ℃--45 ℃

Size and weight

Weight 1.7kg (not including accessories)
Size 272*174*42mm (No hand strap, shoulder strap accessories)

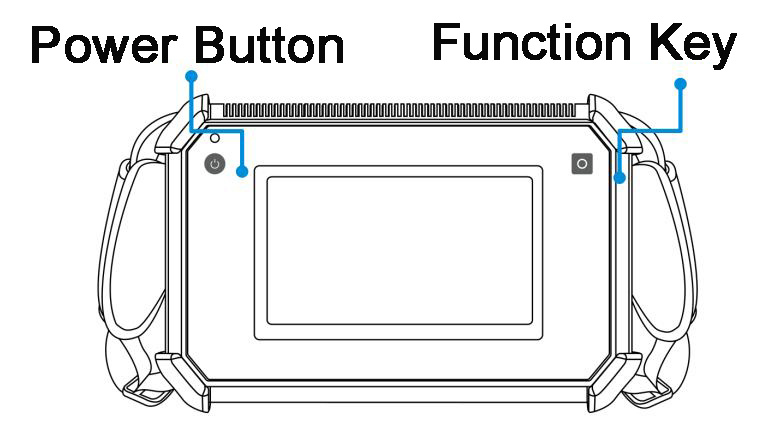

Function

GDUI-311PD Acoustic PD CameraGDUI-311PD Acoustic PD Camera
